Bell/Boeing V-22 Osprey

Summary

Description

The V-22 Osprey is a military, multi-mission, tiltrotor aircraft developed jointly by Bell Helicopter and Boeing. Its development was initiated by the United States Department of Defense in the early 1980s to meet the operational requirements of the U.S. Marine Corps, Navy, and Air Force for a vertical takeoff and landing (VTOL) aircraft with the speed and range of a conventional fixed-wing plane. The aircraft's first flight took place on March 19, 1989, and it became operational with the U.S. Marine Corps in 2007. It was designed to replace aging helicopter fleets like the CH-46 Sea Knight and the CH-53 Sea Stallion.

The development of the V-22 Osprey was a complex and lengthy process fraught with technical challenges, cost overruns, and political controversy. The concept was revolutionary: to combine the vertical lift capability of a helicopter with the speed and range of a fixed-wing aircraft. This required engineering a tiltrotor mechanism that could transition the aircraft from helicopter mode to airplane mode, which was technologically demanding.

The V-22 features a pair of large, three-bladed proprotors that are mounted on wingtip nacelles, each of which houses an engine. During vertical takeoff and landing, the nacelles are rotated to point upward, allowing the Osprey to hover like a helicopter. Once airborne, the nacelles can be rotated forward, converting the aircraft into a more aerodynamically efficient, fixed-wing configuration for forward flight. This unique design gives the Osprey the ability to operate from a variety of environments, including aircraft carriers, amphibious assault ships, and unprepared landing zones.

Despite its innovative design, the V-22 faced numerous challenges during its development phase. The program experienced multiple fatal crashes during testing, leading to questions about the aircraft's safety and reliability. These incidents prompted significant design changes, testing protocols, and even led to temporary program suspensions. Moreover, the program's costs ballooned, eliciting criticism from lawmakers and analysts who questioned the economic viability of the aircraft.

After years of refinement and testing, the V-22 was eventually deemed ready for operational deployment. The U.S. Marine Corps was the first to adopt it in 2007, and it has since been integrated into the U.S. Air Force and Navy as well. Despite its rocky development history, the V-22 Osprey has become a crucial asset for the U.S. military, providing a combination of speed, range, and flexibility.

Armament

The V-22 Osprey wasn't initially designed to serve as a heavily armed gunship, but it does possess some weapon capabilities for self-defense and limited offensive action. The most common weapon configuration includes a rear-facing, belly-mounted 7.62mm M240 machine gun or a .50-caliber M2 machine gun. This setup allows for suppressive fire during troop insertion or extraction but has limitations due to its rear-facing position and restricted field of fire.

Some Ospreys have been equipped with a forward-firing GAU-17 minigun that can be mounted at the front of the aircraft. This adds a limited ability to provide fire support during forward flight. There have also been efforts to increase the Osprey's firepower through the development of specialized kits like the Interim Defense Weapon System (IDWS), which uses a retractable belly turret, enhancing the Osprey's ability to provide more effective suppressive fire.

Operational history

The V-22 Osprey entered operational service with the U.S. Marine Corps in 2007, initially deployed to Iraq as a part of the Multi-National Force Iraq. The aircraft's primary roles were troop transport, medevac, and logistical supply, replacing the aging CH-46 Sea Knight helicopters. In Iraq, it primarily conducted missions involving troop and cargo transport and was generally kept away from intense combat zones due to its relatively unproven status and the high cost per unit. Nonetheless, the Osprey's speed and range provided advantages over traditional helicopters, particularly in quick deployments over large distances.

After Iraq, the V-22 saw action in Afghanistan, participating in troop and supply transport missions as well as casualty evacuation. The aircraft's versatility and speed were valuable in the difficult Afghan terrain. However, it was in Afghanistan that the Osprey faced its first operational combat loss when a V-22 crashed in 2010, resulting in the loss of four lives. The incident did lead to questions about its reliability, although it was not deemed to be a design flaw of the aircraft.

The Osprey has also been used in other, more specialized roles. For instance, the U.S. Air Force's CV-22 variant has been deployed in special operations missions, such as rescue operations and quick insertion or extraction of special forces in hostile territories. Its speed and range make it a valuable asset for rapid-response scenarios.

The V-22 has been deployed in humanitarian missions as well, including earthquake relief efforts in Nepal in 2015 and disaster relief operations in the United States. The aircraft's ability to take off and land vertically has made it particularly useful in situations where traditional runway access is impossible or impractical.

Internationally, the Osprey has been sold to the Japanese Self-Defense Forces, marking its first foreign military sale. Japan has plans to deploy the Osprey in amphibious operations and disaster relief missions.

Variants

Here are the primary versions:

• MV-22B: This is the U.S. Marine Corps variant and the most widely produced version. It is used primarily for assault support, including troop transport, medevac, and logistical supply. It replaced older helicopters like the CH-46 Sea Knight and CH-53 Sea Stallion in the Marine Corps' inventory.
• CV-22B: Operated by the U.S. Air Force Special Operations Command (AFSOC), this variant has additional equipment to support special operations missions. This includes enhanced radar, radio equipment for communication with special operations ground forces, and extra fuel capacity for extended range. The CV-22B is used for long-range infiltration, exfiltration, and resupply missions.
• HV-22: This is the U.S. Navy's variant, designated for combat search and rescue, fleet logistics support, and special warfare support. It is similar in many aspects to the MV-22B but adapted to the Navy's specific operational requirements.
• CMV-22B: This is another Navy variant designed to replace the C-2 Greyhound for the Carrier Onboard Delivery (COD) role. It has increased fuel capacity to provide the range needed for long-distance missions, as well as the capability to carry the F-35 engine power module.
• V-22 Osprey for Export: Japan is the first foreign customer for the V-22, opting for a variant similar to the MV-22B. These are intended for use in amphibious operations, disaster relief, and other missions by the Japanese Self-Defense Forces.

Technical specifications

Current operating countries

Country		Units
	United States	360 (+77)
	Japan	4 (+10)

Numbers in parentheses, e.g. '(+5)', indicate units ordered but not yet delivered.

All operators

Japan • United States

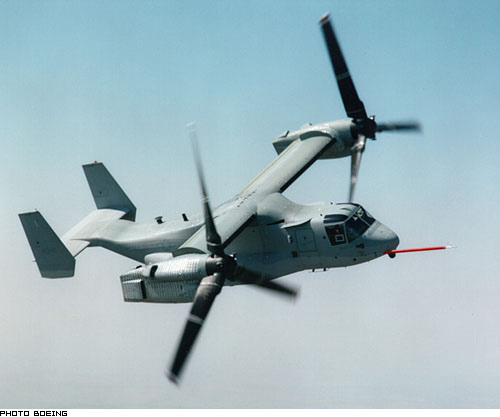

Photo of V-22 Osprey
