Type 053H1Q-class (Jianghu IV)
Summary
| Origin country | 🇨🇳 China |
| Category | Frigate |
| Subtype | Missile frigate |
| Manufacturer | Hudong Shipyard, Jiangnan Shipyard |
| Year commissioned | 1985 |
| Units | 544 SIPING |
Description
The Frigate Jianghu IV class is a versatile and capable naval vessel built for the Chinese Navy. With a displacement of approximately 2,000 tons, the Jianghu IV class frigates are designed to operate in a wide range of maritime environments. These frigates are equipped with advanced combat systems and weaponry, making them valuable assets for both defense and offense purposes.
The Frigate Jianghu IV class features a well-rounded arsenal, including surface-to-air missiles, anti-ship missiles, anti-submarine torpedoes, and naval guns. This comprehensive weaponry allows for effective naval warfare capabilities and enhances the frigate's ability to engage various types of threats.
In addition to their offensive capabilities, the Jianghu IV class frigates also excel in maritime surveillance and patrol missions. Equipped with advanced radar and sensor systems, these frigates have excellent situational awareness and can effectively monitor and secure maritime territories.
The design of the Frigate Jianghu IV class prioritizes both sea-keeping ability and agility, allowing these frigates to operate in rough seas while maintaining exceptional maneuverability. With a maximum speed of over 30 knots, these vessels can rapidly respond to changing situations and perform a wide range of missions.
The Frigate Jianghu IV class incorporates modern stealth technology and signature reduction measures, making them less detectable by enemy radars and reducing the risk of engagement. This enhances their survivability and provides increased effectiveness in covert operations.
In terms of crew accommodation and operational capability, the Jianghu IV class frigates are designed to provide comfortable living conditions for crew members, ensuring long-duration missions can be conducted effectively. These frigates have comprehensive command and control systems, enabling effective communication and coordination during complex military operations.
Technical specifications
| Type 053H1Q | |
|---|---|
| Displacement | 1820 tons |
| Range | 7000 km at 15 knots |
| Crew | 200 members |
| Width | 12.0 m (39.4 ft) |
| Length | 112.0 m (367.5 ft) |
| Propulsion | 2 SEMT Pielstick 12 PA 6 diesels with a power of 16,000 hp each - 2 propellers |
| Armament | 2 Hai Ying-2 (II 1) + 1 100mm Creusot-Loire gun + 8 37mm 76A88 guns + 2 LR RBU 1200 + 6 T/ASM Ilas 3 + 1 Dauphin helicopter |
| Maximum speed | 32 knots |

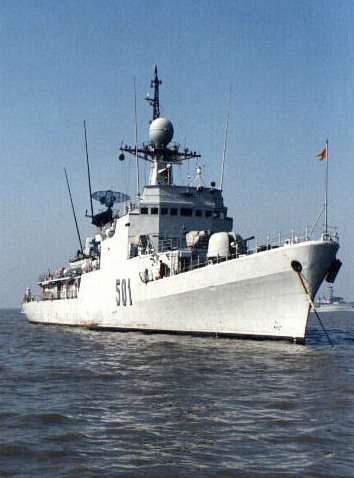

Photo of Type 053H1Q class
