F-14 Tomcat

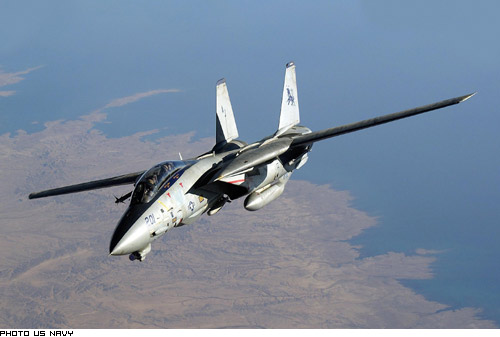

The Grumman F-14 Tomcat is an American carrier-based supersonic twin-engine, two-seat, variable-sweep wing fighter built by Grumman for the United States Navy. First flown on 21 December 1970 and deployed from September 1974 aboard USS Enterprise in place of the F-4 Phantom II, it served as the Navy's fleet air defence interceptor, air superiority fighter and tactical reconnaissance platform before its retirement on 22 September 2006. A total of 712 were built between 1969 and 1991. Iran, the sole export customer, received 79 F-14As from 1976 and flew them through the Iran–Iraq War. The type is known for its AN/AWG-9 radar and AIM-54 Phoenix long-range missile combination.

Development

The Navy had sought a long-range fleet air defence interceptor since the late 1950s, but the Secretary of Defense forced it into the joint Tactical Fighter Experimental programme, whose naval F-111B was built by General Dynamics with Grumman as partner. Overweight and lacking fighter performance, the F-111B lost congressional funding in May 1968 after the Deputy Chief of Naval Operations for Air Warfare testified against it. When NAVAIR issued the Naval Fighter Experimental (VFX) request for proposals in July 1968 — a tandem two-seat, twin-engine Mach 2.2 fighter with an M61 cannon and six AIM-54 Phoenix — Grumman's Model 303E won in January 1969 against four other bidders. The design reused the F-111B's TF30 engines, AWG-9 radar and Phoenix missiles and became the largest and heaviest US carrier fighter. The Navy skipped the prototype phase, and the first aircraft flew on 21 December 1970, 22 months after contract award; initial operational capability came in 1973.

A 1984 decision replaced the TF30 with the General Electric F110-GE-400, producing the F-14A+ (redesignated F-14B in May 1991; 38 new and 43 converted) and the F-14D with digital avionics, a glass cockpit and the AN/APG-71 radar (37 new and 18 F-14D(R) rebuilds). The Secretary of Defense cut back F-14D procurement in 1989 and ended production in 1991 in favour of the F/A-18E/F, despite a Navy appeal for at least 132 aircraft; Congress turned down Grumman's Quickstrike, Super Tomcat 21 and Attack Super Tomcat 21 proposals as too costly. Cleared for unguided bombs in 1992, the Tomcat received the LANTIRN AN/AAQ-14 targeting pod on the right glove pylon in the mid-1990s and the GBU-38 JDAM in 2003.

Design

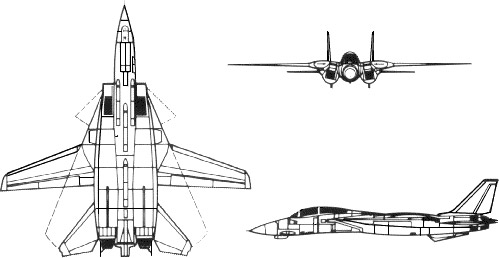

The wings sweep automatically between 20° and 68° under the Garrett AiResearch Central Air Data Computer and oversweep to 75° for deck parking. The fuselage between the widely spaced engine nacelles supplies 40–60% of total lift and houses the belly weapon stations. About 25% of the structure is titanium, including the electron-beam-welded wing box and pivots, and the airframe was built for 7.5 g, limited to 6.5 g in fleet service to extend a 6,000-hour life later stretched to 7,200 hours.

The F-14A's two Pratt & Whitney TF30-P-412A turbofans, rated at 93 kN (20,900 lbf) each, gave Mach 2.34 but were prone to compressor stalls at high angle of attack and were blamed for 28% of all F-14 accidents. The F110-GE-400 of the F-14B and D delivers 119.9 kN (26,950 lbf) static thrust, raising the climb rate by 61% and strike radius by 60% and allowing carrier launches without afterburner. The Hughes AN/AWG-9 X-band radar, with a 91 cm (36 in) planar array, tracks 24 targets and engages six in track-while-scan out to about 97 km (60 mi); the F-14D's AN/APG-71 added Link 16/JTIDS. An F-14D is 19.13 m (62 ft 9 in) long and spans 19.55 m (64 ft 1.5 in) unswept, weighs 19,838 kg (43,735 lb) empty and 33,725 kg (74,350 lb) at maximum take-off.

Armament

A 20 mm M61A1 Vulcan cannon with 675 rounds is mounted on the left side of the nose. Ten hardpoints — six under the fuselage, two under the nacelles and two on the wing gloves — carry 6,600 kg (14,500 lb) of stores. The design load of six AIM-54 Phoenix was never flown operationally, being too heavy to bring back aboard; the typical Cold War load was two Phoenix, three AIM-7 Sparrows, two AIM-9 Sidewinders and two drop tanks. The US Navy fired the Phoenix in combat only twice, over Iraq in January and September 1999, without a kill. In the strike role the "Bombcat" carried Mk 80 series bombs, Mk 20 Rockeye, Paveway laser-guided bombs and GBU-38 JDAM, with the TARPS reconnaissance and LANTIRN pods.

Operational History

VF-1 and VF-2 took the F-14A to sea aboard USS Enterprise in September 1974. On 19 August 1981 two VF-41 Tomcats shot down two Libyan Su-22s over the Gulf of Sidra with AIM-9Ls, and on 4 January 1989 two VF-32 aircraft downed two Libyan MiG-23s in the same waters. The US Navy's only F-14 lost to enemy action, a VF-103 F-14A+, fell to an SA-2 near Al Asad on 21 January 1991 during Operation Desert Storm. Tomcats led the first strikes into Afghanistan on 7 October 2001, and on the final cruise aboard USS Theodore Roosevelt VF-31 and VF-213 logged 1,163 combat sorties and 6,876 hours over Iraq, the last mission on 8 February 2006. The retirement ceremony at NAS Oceana followed on 22 September 2006 and the last flight on 4 October 2006.

Iran ordered 30 F-14As and 424 Phoenix missiles in January 1974 under Project Persian King, soon raised to 80 aircraft and 714 missiles with Khatami Air Base near Isfahan built to house them; the first arrived in January 1976, and 79 were delivered before the 1979 revolution cancelled the last. An Iranian F-14 scored its first kill, an Iraqi Mi-25, in 1980, and the fleet claimed at least 160 Iraqi aircraft during the 1980–88 war, 55 of them confirmed, against 12 to 16 Tomcats lost by a US estimate; of ten confirmed losses, four fell to Iraqi Mirage F1s. A locally upgraded F-14AM was delivered in 2012. Israeli strikes destroyed two F-14s on 16 June 2025 and three more on 21 June 2025; with about ten reported operational before the 2026 Iran war, Israeli strikes on the 8th Tactical Fighter Base at Isfahan on 7 March 2026 left at least eight destroyed F-14s visible on satellite imagery two days later, some possibly decoys, and whether any airworthy Tomcats remained was unknown as of September 2026.

Variants

• F-14A: Initial two-seat all-weather interceptor with TF30 engines and the AN/AWG-9 radar; 558 delivered to the US Navy and 79 to Iran, with late-service precision strike upgrades.
• F-14A (Upgrade): Post-Desert Storm F-14As with F-14D-standard displays and defensive avionics for precision munitions.
• F-14B: The F-14A+ of March 1987, redesignated in May 1991, with F110-GE-400 engines and the ALR-67 warning system but the AWG-9 retained; 38 new and 43 converted, 81 later upgraded.
• F-14D Super Tomcat: Final production variant from 1991 with F110 engines, AN/APG-71 radar, glass cockpit, JTIDS, AN/AAS-42 IRST and NACES seats; 37 new plus 18 F-14D(R) rebuilds.
• F-14AM: Iranian overhaul delivered from 2012 with locally sourced radar and weapon system components and the Fakour-90 (AIM-23B) missile, a MIM-23 Hawk seeker in a Phoenix airframe.
• Super Tomcat 21: Proposed 1990s rebuild with F110-GE-429 thrust-vectoring engines and Mach 1.3 supercruise, rejected in favour of the F/A-18E/F.
