Bell 429 GlobalRanger

Summary

Description

The Bell 429 GlobalRanger's development was driven primarily by requirements from the emergency medical services (EMS) sector for a larger cabin than the Bell 427 and instrument flight rules (IFR) certification. Bell initially considered a stretched 427 model but subsequently adopted the Modular Affordable Product Line (MAPL) concept, developed in collaboration with Korea Aerospace Industries and Mitsui Bussan Aerospace of Japan. While leveraging the modular airframe and advanced rotor blade design from the MAPL program, the 429 retained a derivative engine and rotor drive system from the 427. By February 2006, critical MAPL technology components had undergone testing using a modified 427 airframe. The first Bell 429 prototype conducted its initial flight on February 27, 2007. Certification encountered delays attributed to parts and material shortages prevalent in aviation manufacturing at the time. Type certification was granted by Transport Canada Civil Aviation (TCCA) on July 1, 2009, followed by the Federal Aviation Administration (FAA) shortly thereafter, and European Union Aviation Safety Agency (EASA) certification in September 2009. Air Methods Corporation served as the launch customer, receiving the first production aircraft on July 7, 2009.

The Bell 429 incorporates a four-blade main rotor system featuring soft-in-plane flex beams and composite rotor blades with swept tips designed to mitigate noise. Similarly, the tail rotor configuration utilizes two, two-blade rotors stacked at uneven intervals in an X-shape to reduce noise levels. The cabin provides a total volume of 204 cubic feet, comprising a 130 cubic foot passenger area and a 74 cubic foot baggage compartment, with a flat floor configuration designed to facilitate patient loading. An optional set of rear clamshell doors located beneath the tailboom can be specified to further simplify patient access for EMS operations. The cockpit is equipped with a glass display and includes a three-axis autopilot and flight director as standard equipment, with an optional fourth axis kit available. Standard landing gear consists of skids, while retractable wheel landing gear is available as an option, which increases the cruising speed by five knots. The helicopter is certified for single-pilot IFR Category A operations and is capable of continued flight with one engine inoperative. The main transmission has a rated time between overhauls of 5,000 hours, and the tail rotor gearbox is rated for 3,200 hours.

The Bell 429 has achieved operational status across a range of roles in 42 countries. By July 2018, a fleet of 325 aircraft had accumulated 330,000 flight hours in service with police forces, air medical teams, and military organizations. It has been procured by military and governmental operators in countries including Australia, France, Indonesia, Kuwait, Oman, Switzerland, Slovakia, Sweden, Turkey, Thailand, the United States, and the United Kingdom, among others. Operational deployments with police forces have occurred in jurisdictions such as Australia, Canada, and New Zealand.

Main Variants:

• Bell 429: The baseline production model featuring a glass cockpit and certified for single pilot IFR operations.

• Bell 429WLG: An optional configuration equipped with retractable wheel landing gear, providing an increase in cruising speed.

• Bell 429 EMS: Configured for emergency medical services, including a flat floor for patient loading and the option for rear clamshell doors.

• Bell 429 Law Enforcement: Configured with specific equipment for law enforcement surveillance and mission requirements.

• Bell 429 VIP: A variant featuring an enhanced interior designed for executive transport and passenger comfort.

Technical specifications

Current operating countries

Country		Units
	Jamaica	8 (+1)
	Oman	5
	Guyana	0 (+2)

Numbers in parentheses, e.g. '(+5)', indicate units ordered but not yet delivered.

All operators

Guyana • Jamaica • Oman • United States

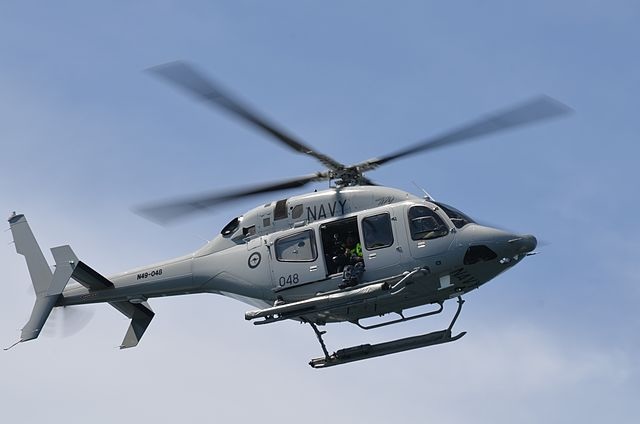

Photo of 429 GlobalRanger
